SlingShot Survey Tool

The SlingShot survey tools deliver digital wellbore surveying capability at a low cost with the latest technology.



  • Built-in menu-driven user interface with simple two button operation
  • Fully digital low-power circuitry for long battery life
  • 3-axis accelerometers and mangetometers
  • Temperature sensor

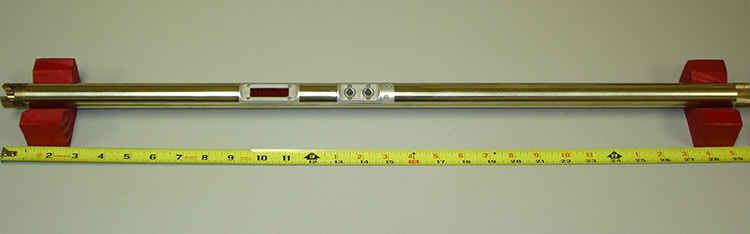

  • 1-in. O.D. x 30-in. length
  • Operating temperature 125 deg. C (257 deg. F)
  • Built-in diagnostics
  • Accuracy: Azimuth/MTF: +/- 0.5 degrees
  • Accuracy: Inclination/GTF: +/- 0.1 degrees

The tool is available in two configurations, single-shot with timer or monel sensor and a multi-shot.


Single-shot features

  • Optional non-magnetic (monel) collar sensor
  • Timer-based trigger

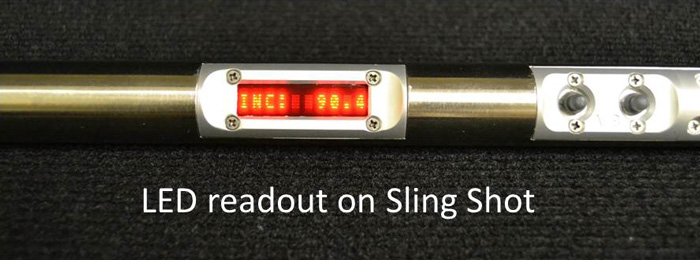

  • On-device display for recorded survey values (time, inc., azm., temperature)
  • No need for PC software for Inclination, Azimuth, Temp, GTF or MTF

Multi-shot features

  • Initial time trigger with secondary interval timer
  • Memory support for approx. 1500 surveys
  • Complete telemetry data recorded (including g/h-totals)
  • Plug-and-play USB interface to PC for data downloads

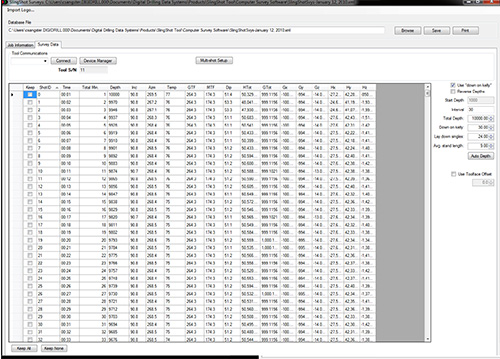

  • Software includes: editing, printing, auto depth and reverse depth features
  • Survey settings can be done on the tool or through the PC software
